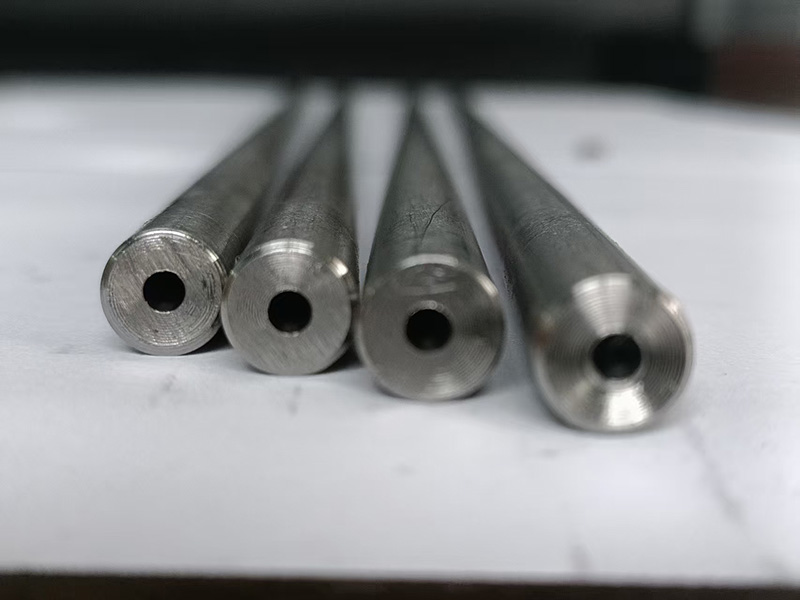

Premium Titanium 6AL4V Drilling hole tube

Titanium tubes are light in weight, high in strength , excellent mechanical properties,better anti corresion.

Brand

MaterialGr5 Titanium 6AL 4V

Product Introduction
Standard ASTM B 861/ ASTM B 862 / ASTM B 338 BS JIS NF DIN GB etc
Grade GR1,GR2,GR3,GR4,GR6,GR12,GR9,Ti-6242S,GRF-5,GR23,Ti-6246,Ti-10-2-3,BT1-00,BT1-0,BT5-1,BT20,BT6C,BT6,BT3-1,BT9,BT22 etc
Specification OD：8-600mm WT: 0.2-15mm L(max)25-6000mm
Manufacturing method Deep hole drilling / Extrusion / welded
Surface Black surface / Polished surface / Turned surface / Machined surface
Advantages High accuracy ; light weight, high strength and superior mechanical properties, strong corrosion resistance,excellent performance at both high and low temperatures
Extra service Customize production

Chemical Component
Grade Fe C N O H AL V Residuals Residuals
(max) (max) (max) (max) (max) Elements Elements
Each（max） Total（max）
Gr5 0.40 0.08 0.05 0.20 0.015 5.5-6.75 3.5-4.5 0.1 0.4
mechanical property
Grade Tensile strength,Mpa Yield strength,MPa Elongation, %
(min) (min) (min)
Gr5 895 828 10



Hot words : titanium seamless tube / welded tube, China, manufacturers, suppliers, factory, metal company, wholesale, tiitanium alloy products
